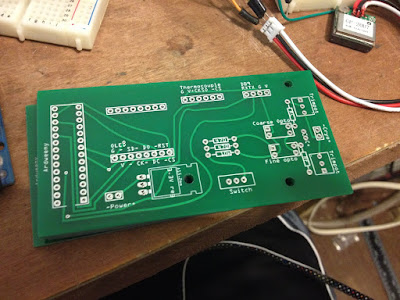

|The curved traces are "artistic" or something|

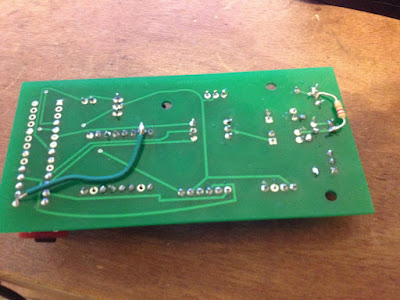

|Whoopsie! Good thing I'm a very forgiving customer to myself.|

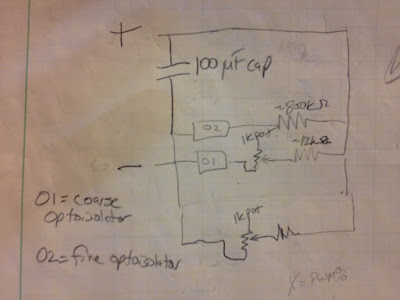

Two optoisolators are used because when I tried with just one, the Arduino's 8-bit PWM output wasn't fine enough to adequately control the output when the temperature was close to the lower end of the range. The second optoisolator is in series with a much higher value resistor, and thereby contributes a much smaller signal to the output. Playing around with the values, 800K was approximately the correct value to make the fine output roughly linear between the coarse pulses, giving it roughly 12 bits or so of usable PWM output range, which is fine enough for this purpose. I used optoisolators rather than transistors because I don't know what's going on in the thermistor measuring circuit - I didn't want to take any chances with frying anything on either side with weird voltages.
The Arduino (actually an Ardweeny arduino clone) also connects to the cryocooler's serial interface to read the temperature it just attempted to transmit to the cryocooler, correcting it if it's off. It also reads the power output to the cryocooler. I added a nice little OLED display to show the measured temperature, temperature reported by the cryocooler, and the cryocooler power, so it doesn't need to be hooked up to the computer to read these values. I also added an on/off switch to allow me to soft shut down the cryocooler through its software before turning off its power. This should help avoid damage from hard stops.
|The OLED in Alluring Aqua|
I've loaded the board design (with corrections to my original errors) and the Arduino code here.
The other parts of the quixotic Cryocooler quest are here - Part 1 and Part 2 and Part 3 and Part 4
